Measuring Inductance

What is needed?

For these measurements we need:

  • Function Generator.
  • Oscilloscope
  • Coil to be tested
  • Resistor (value depends on the coil value and frequency range)

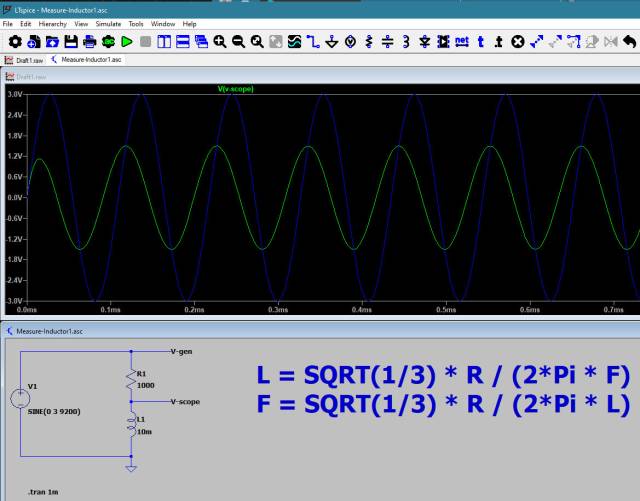

Setup

Connect the coil with a series resistor to the function generator. Adjust the frequency until the peak-to-peak voltage over the coil is the same as the peak-to-peak voltage over the resistor. In that case “V-scope” is 50% of “V-Gen”.

Formulas

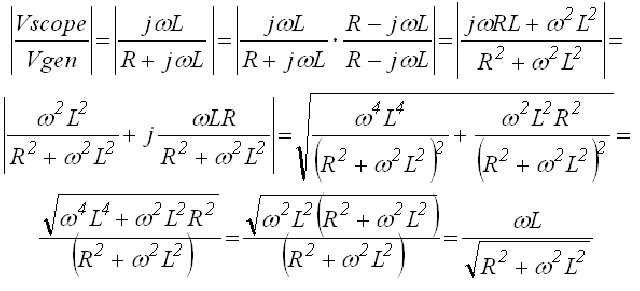

The exact ratio between the generator voltage and the voltage measured by the scope over the inductor can be calculated with the following network theory:

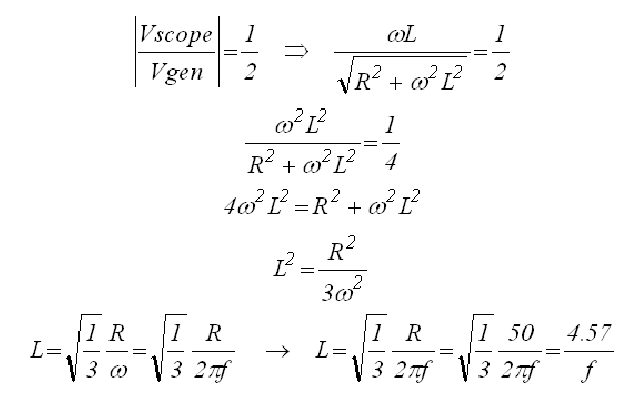

In this formula L represent the inductance, R the resistance, and omega the radial frequency ( = 2*pi*f with f in Hz). The question now is for what frequency (Vscope/Vgen) = 0.5:
