Inductance
High vs. Low Permeability Core Comparison
| Feature | High Permeability (μ) | Low Permeability (μ) |
|---|---|---|
| Inductance per turn | High | Low |
| Saturation Current (I_sat) | Low (saturates easily) | High (resists saturation) |
| Knee | Sharp and abrupt | Gradual and soft |
| Core Losses (AC/Ripple) | Higher (high AC flux density) | Lower (flatter magnetization slope) |
| Winding (Copper) Losses | Lower (requires fewer turns) | Higher (requires more turns) |
| Typical Materials | High-nickel alloys, MnZn ferrites | Powdered iron, gapped ferrites, Kool Mμ |

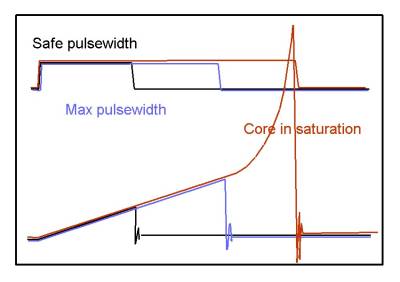

Saturation current
In the middle of the knee
Inductor value
Inductor value can be calculated as follows:
H = V * s / A where H is Henry, V is voltage over inductor, s is time, A is current at time is s.
Formula
v = L * (di/dt)
